2x1 Convertible Stock Crates for Livestock Transport

Uralla Metal designs and manufactures custom 2x1 convertible stock crates built for safe and efficient livestock transport. These versatile crates are designed to handle both cattle and sheep, providing flexibility for a wide range of farming and transport operations.

Each stock crate is custom-built to suit your vehicle and requirements, with options for pen configurations, internal layouts and additional features. Our designs focus on livestock safety, ventilation and ease of handling to reduce stress during transport.

Features can include aluminium sideboards, pen partitions, sheep ramps, loading systems, lighting and access options. Built using quality Australian steel and aluminium, our crates are engineered for strength, durability and long service life.

Designed to meet Australian livestock transport standards, our 2x1 convertible stock crates provide a reliable, compliant solution trusted by farmers and transport operators across Australia.

  • Fully sealed framework using AS 1163 C350 plus grade steel for corrosion free longer life along with AS 3679.1-300 sections and AS 1594 – HA250 plate work.

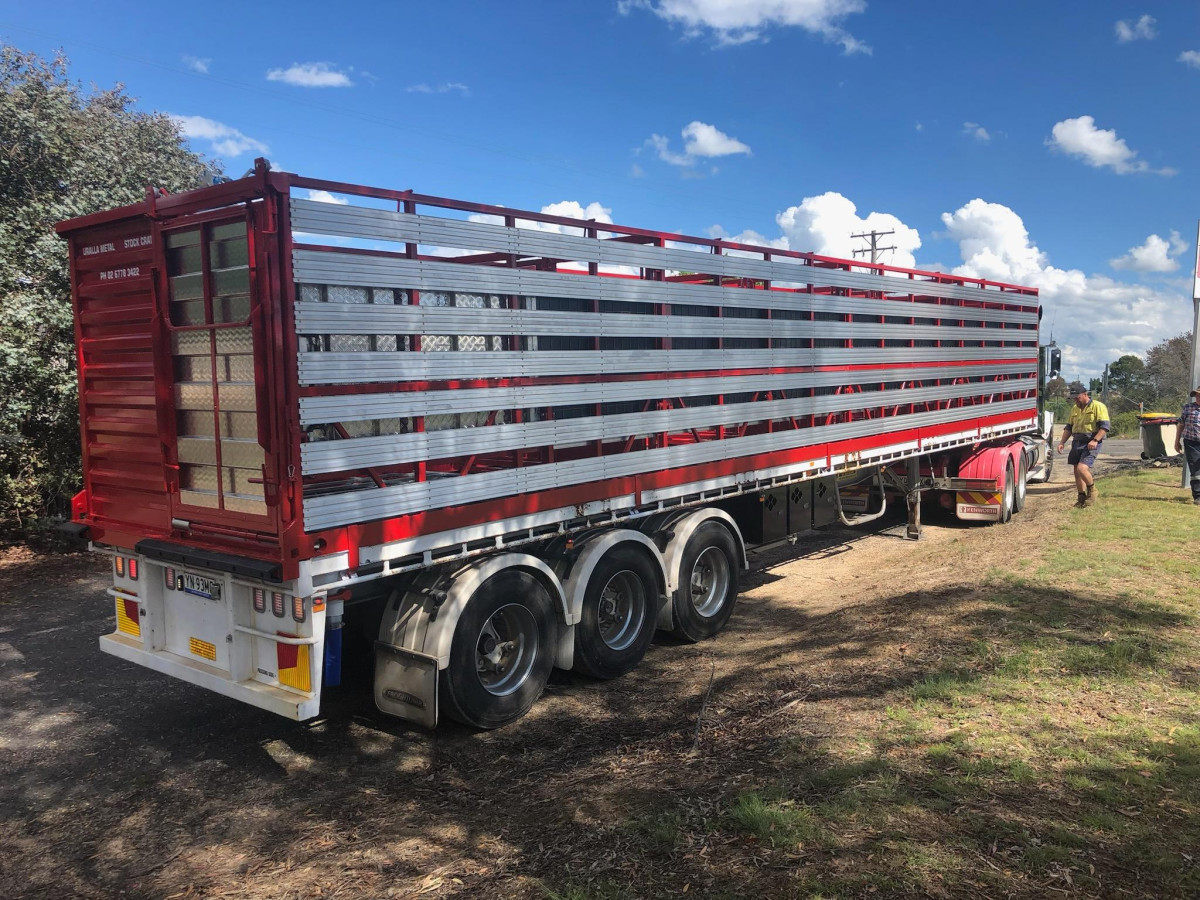

  • 2.0 metres high x custom lengths up to 48ft and choice of pen configurations and sizes within vehicle dimension limits.

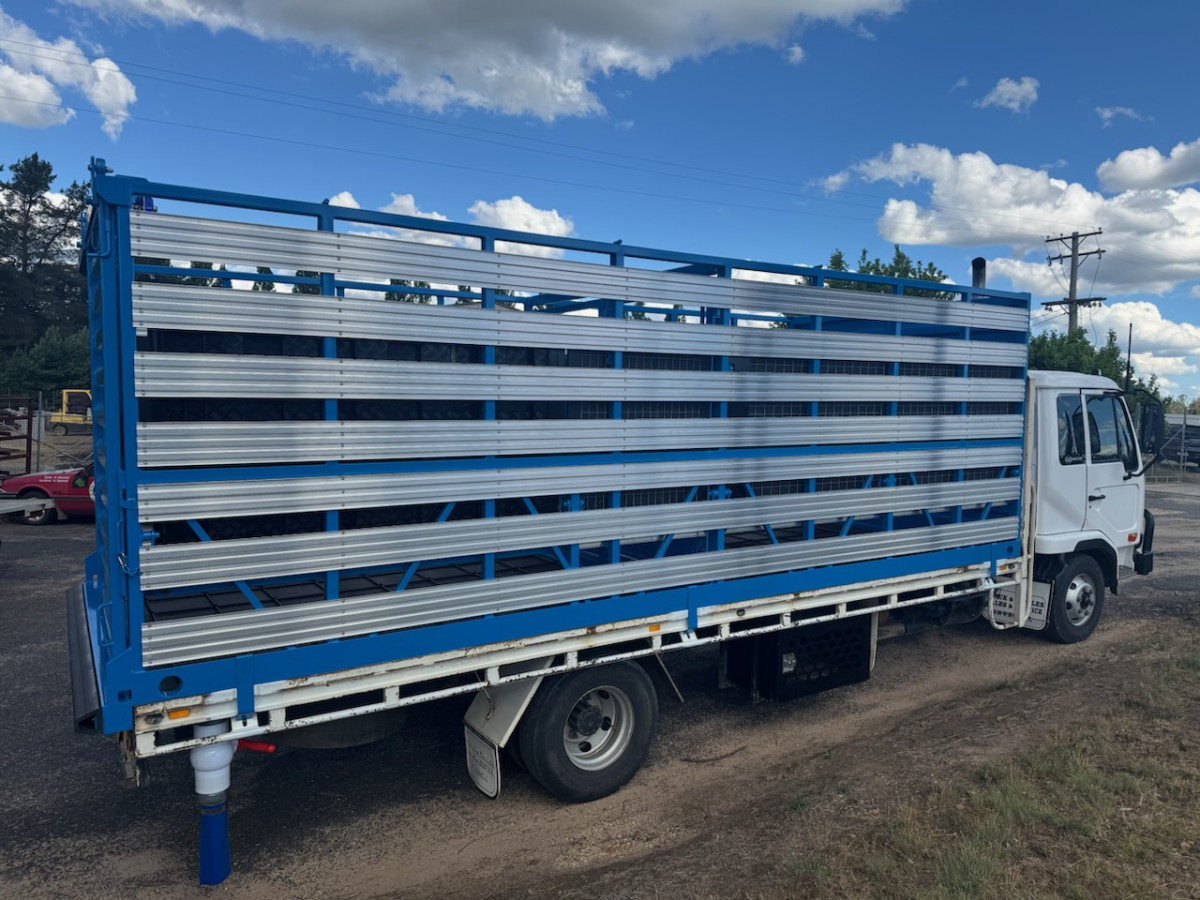

  • Polished Aluminium sideboards with anti–corrosive huck rivets to prevent limbs of livestock from protruding

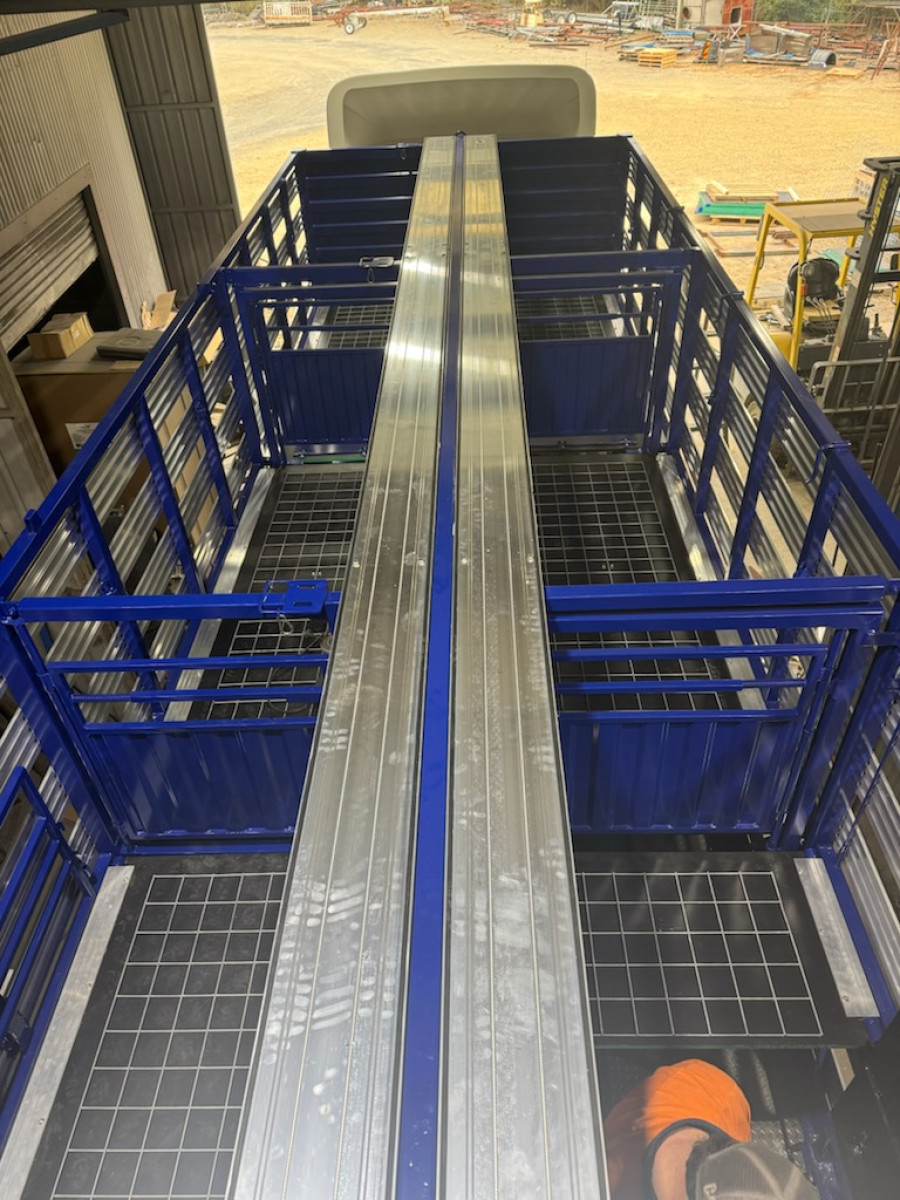

  • Aluminium extruded Pen partition profiles and deck carriers for easy handling

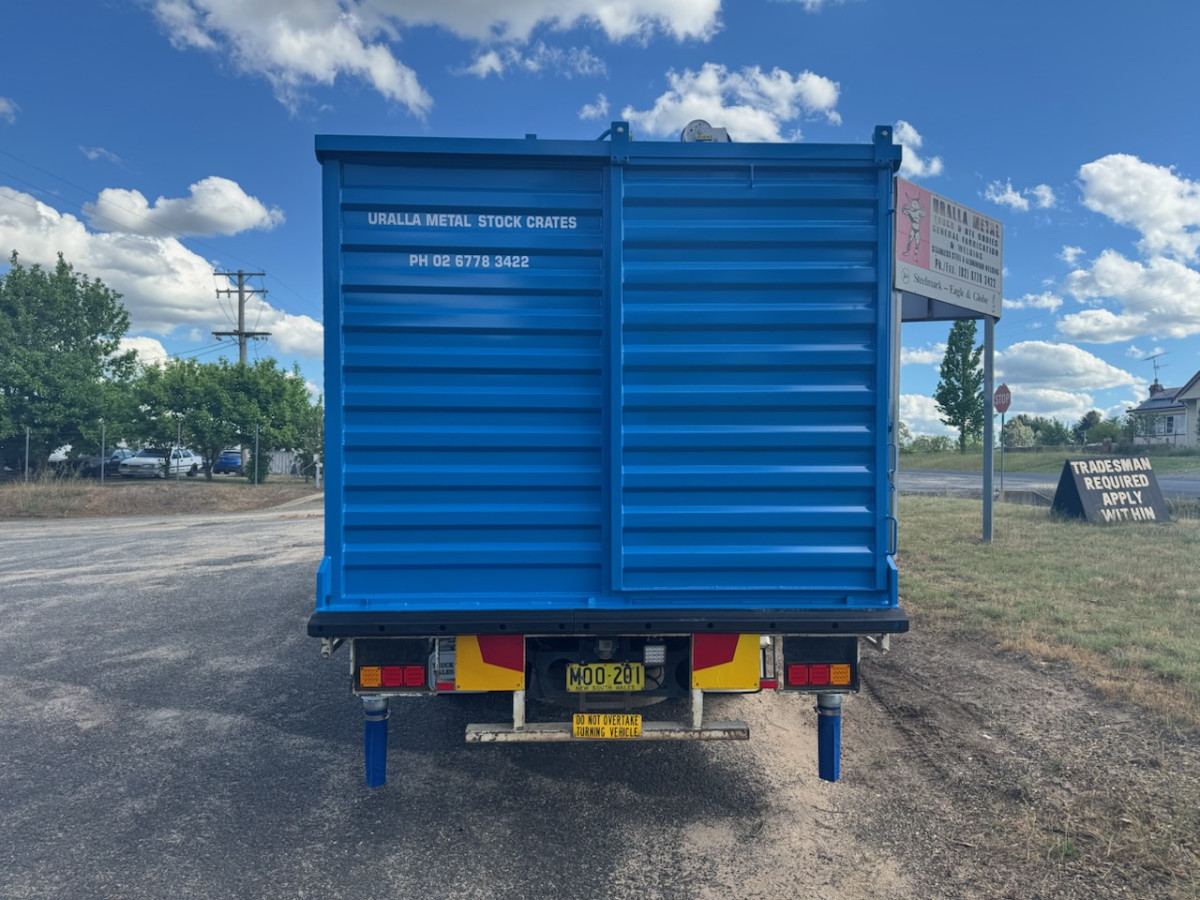

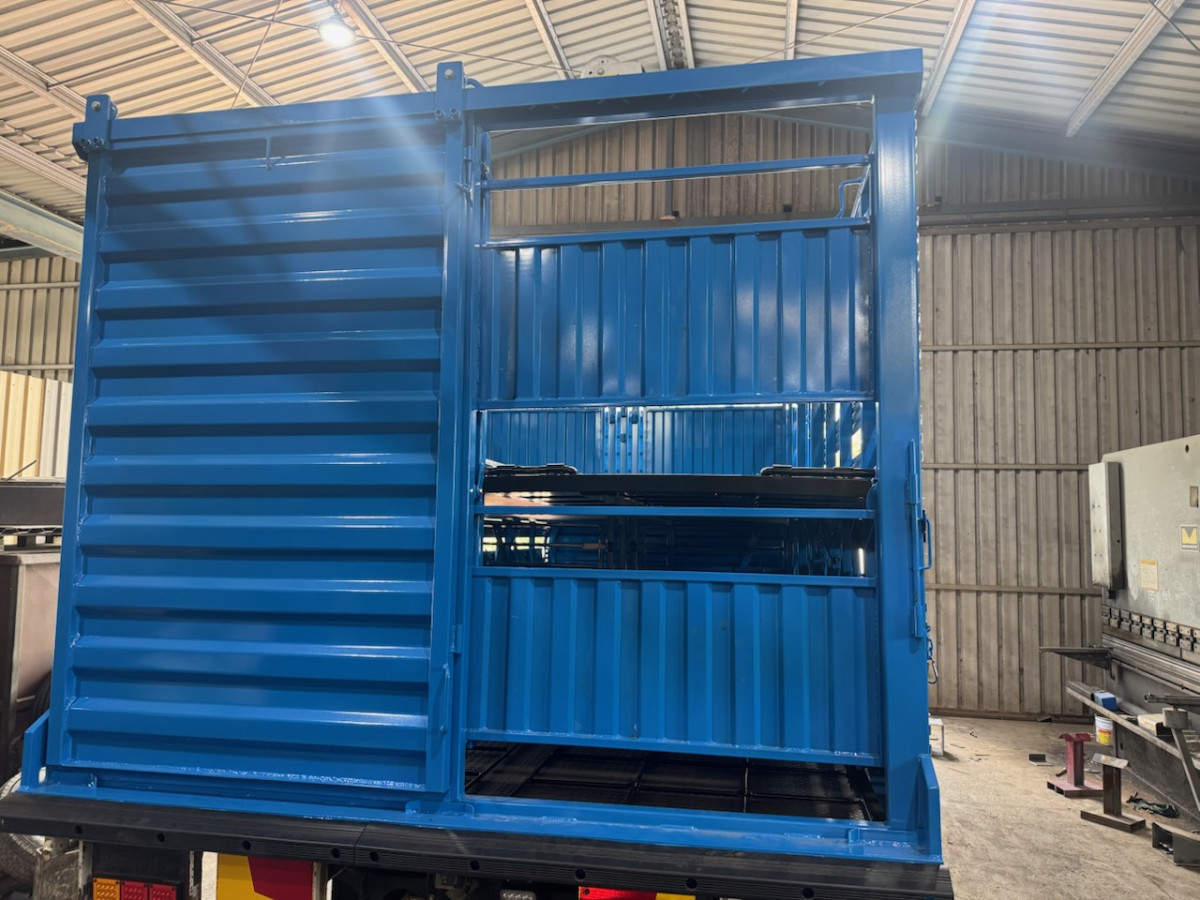

  • Pressed aluminium inserts and spring assisted drop down back door for easy lifting in addition to slide opening for quick access.

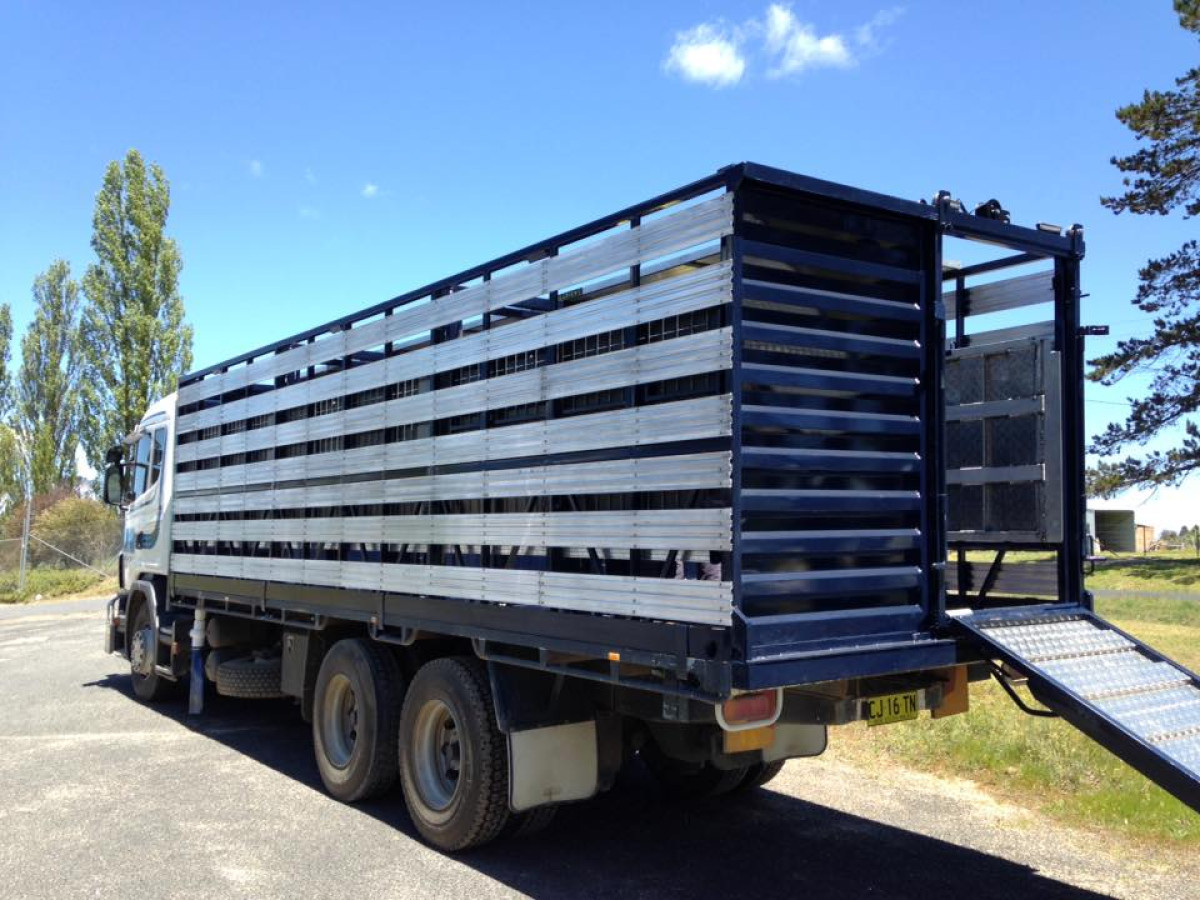

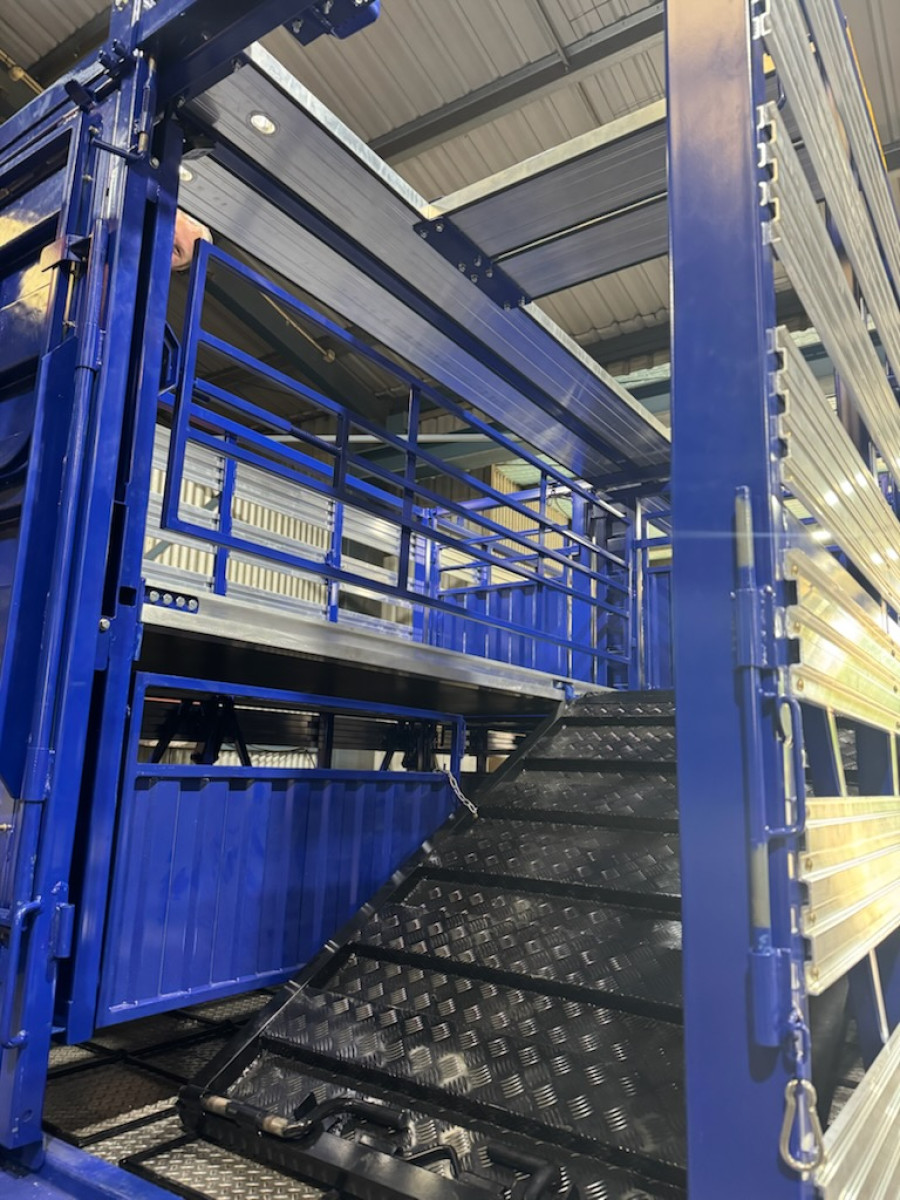

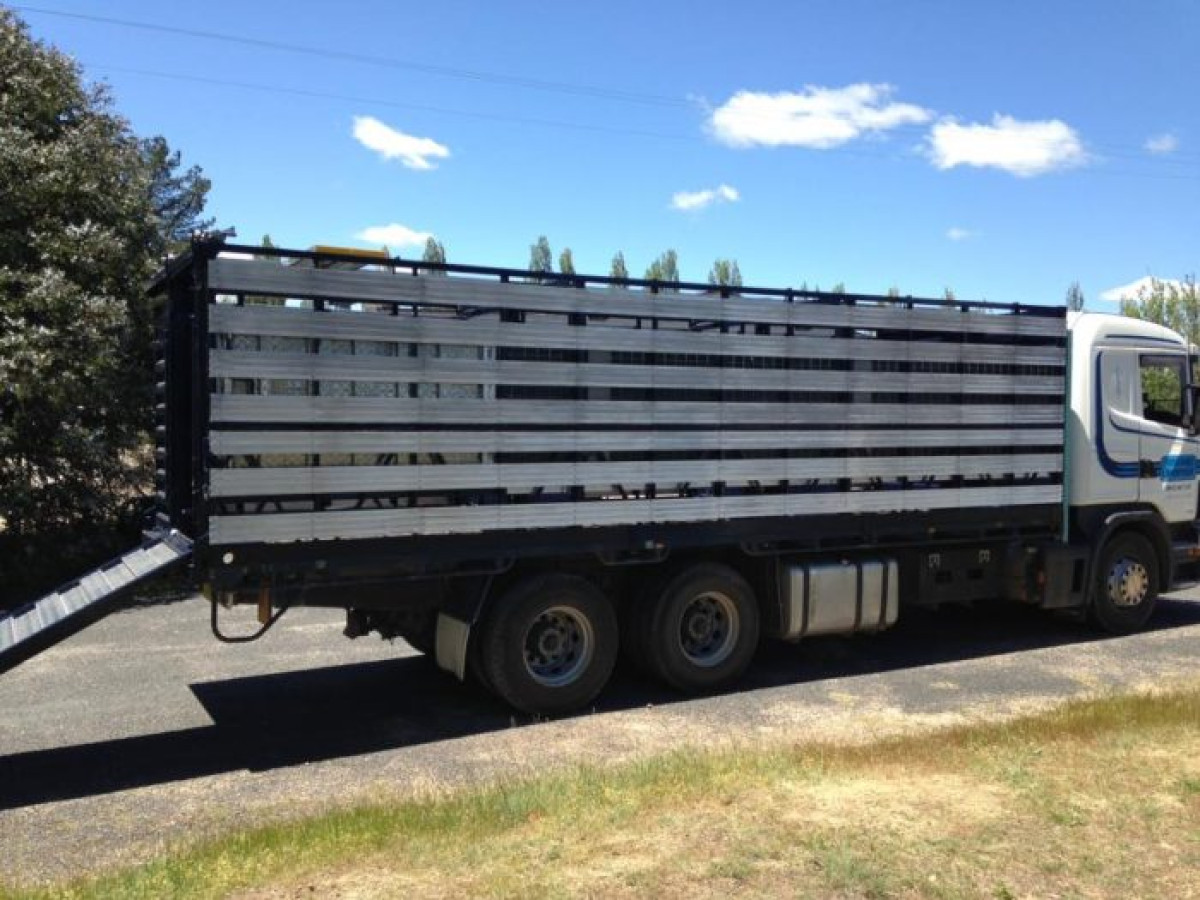

  • Hand winch assisted fully aluminium sheep ramp inclines no more than 30 degree to minimize stress
  • ASTM A 276 SS 304 Stainless Steel Crank arm and fixings to structural grade
  • Sheep decks to AS/NZS 2272 Marine Formply Hardwood, Stress Grade F27, Green 17mm thk on cranks for non-bruise when converted to cattle

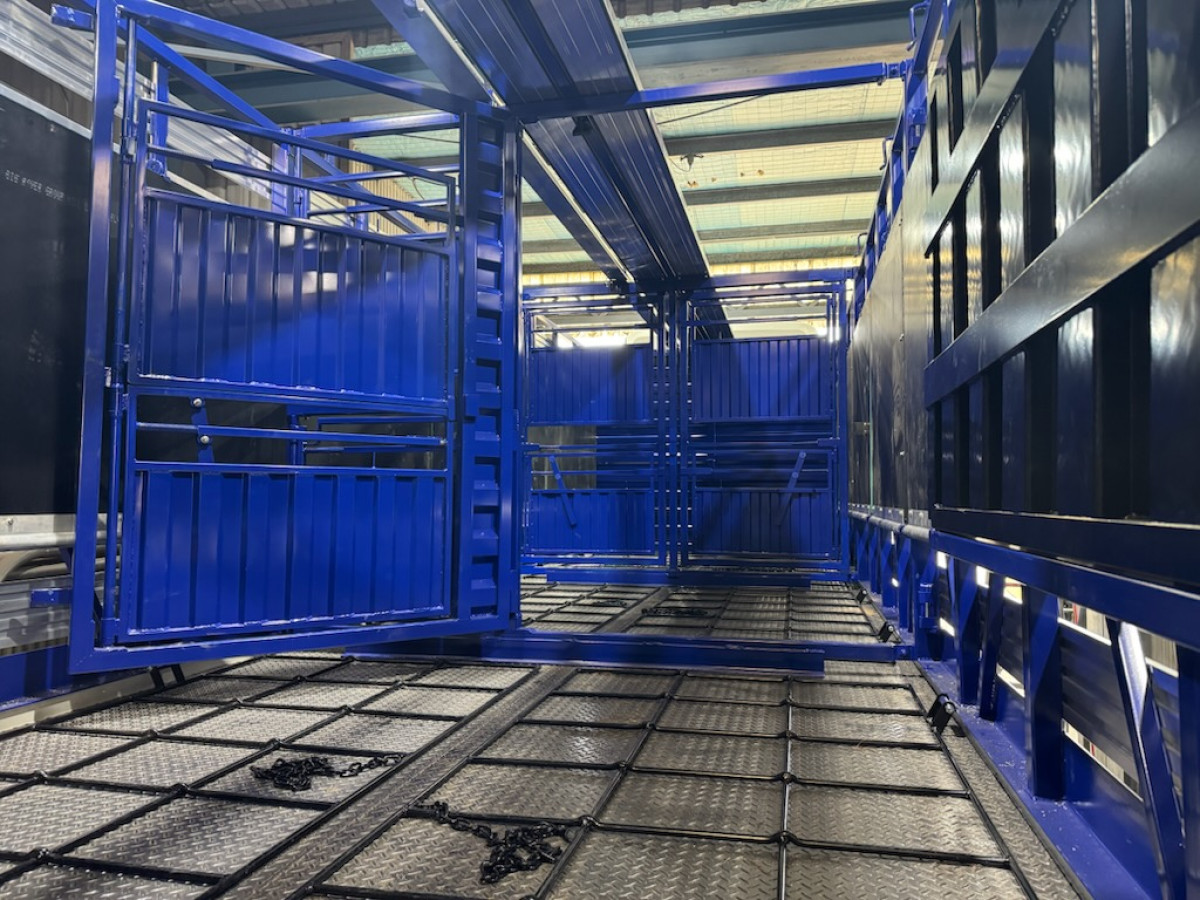

  • Slam shut cattle gates swinging to centre and sheep gate inserts swinging to side with provision to open bottom sheep gates from outside of crate.
  • Quality and experienced workmanship ensures all Welding as per AS1554.1 Structural Steel and Fabrication Tolerance as per AS 4100 clause 14.4

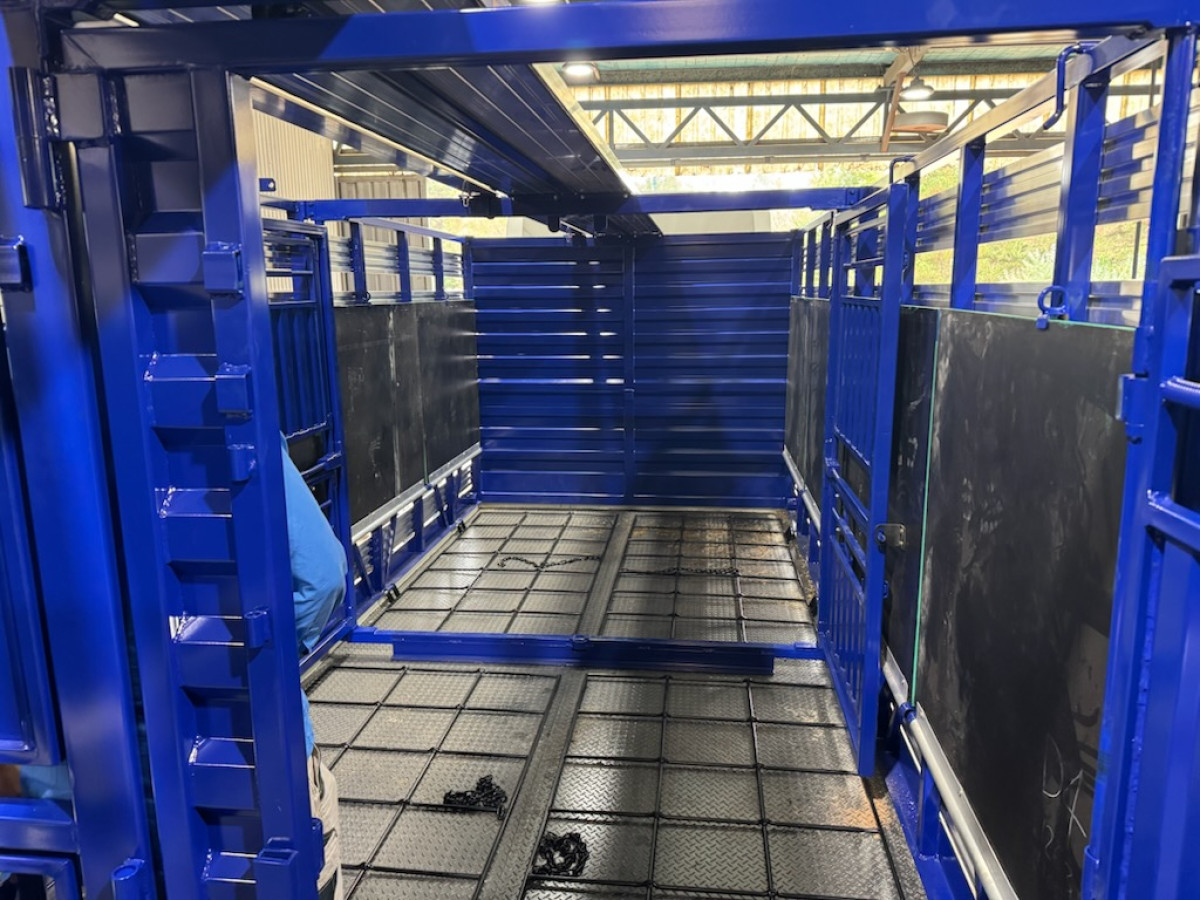

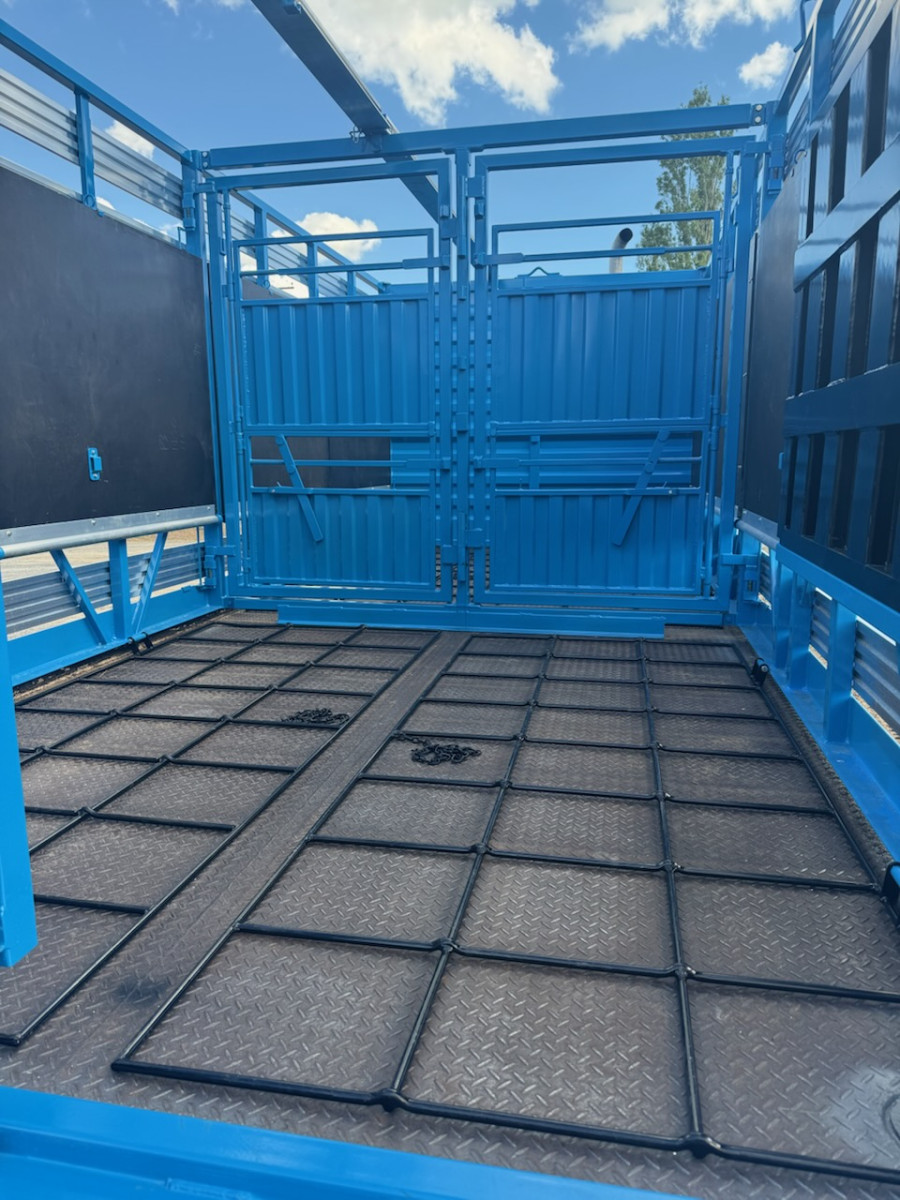

  • Lift up floor grid with 14mm round bar
  • 2 x Rear blocking gates (slide out type)
  • Bumper protection docking rubber
  • Fully sand blast cleaned to AS 1627 class 2.5
  • Painted with: -1 coat of 2 pac epoxy primer -2 coats of 2 pac Australian standard topcoat in colour of choice
  • Built in steps on side at rear

Optional Extras

  • Unloading legs
  • Interior LED lights
  • Removable loading sides for drop down back door

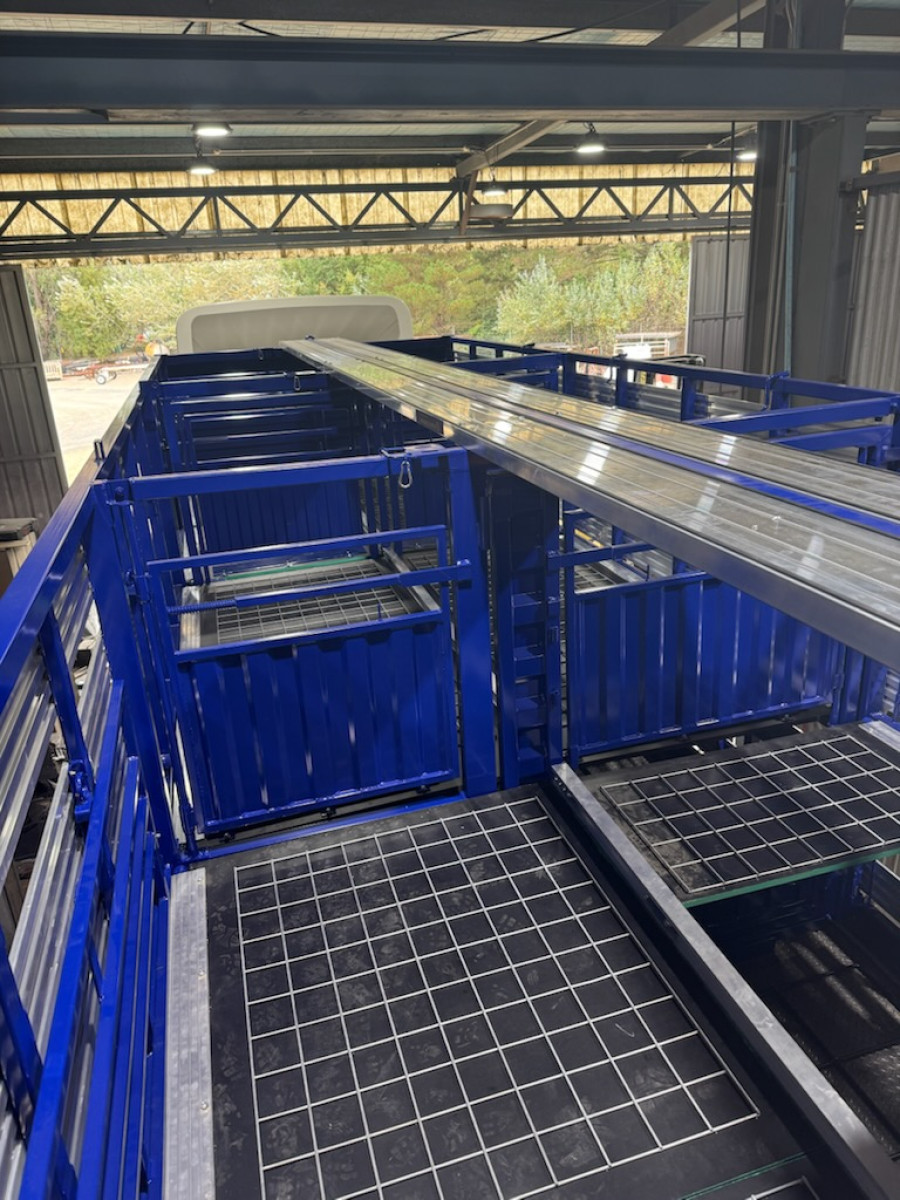

  • Overhead aluminium planked platform

Contact Uralla Metal today to discuss your requirements and get a quote.
